Blueprint Library

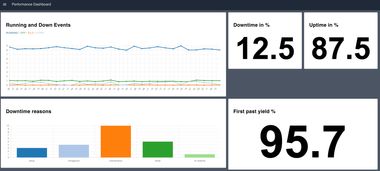

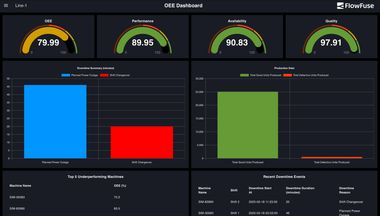

The Manufacturing Performance Dashboard serves as an overview for monitoring and analyzing key performance metrics in real-time, providing a comprehensive overview of the manufacturing operations for a station or line.

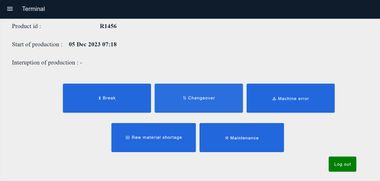

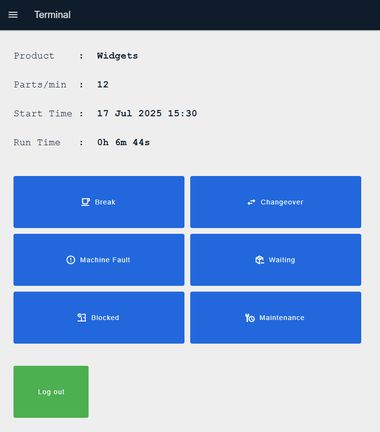

The Performance operator terminal blueprint allows an end user to track runtime and downtime information of a machine.

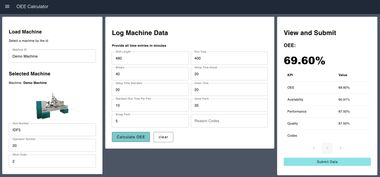

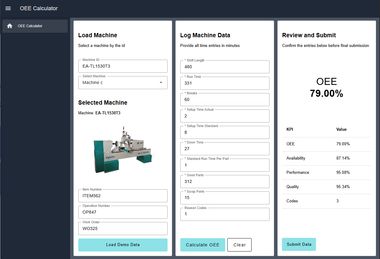

The OEE Calculator blueprint allows an end user to input production information to calculate the Overall Equipment Effectiveness (OEE) for a machine, if no automatic calculation is possible.

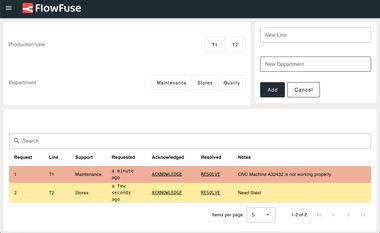

The Manufacturing Support Request Blueprint is a framework for managing and streamlining support requests in manufacturing. It standardizes the process for submitting, tracking, and resolving issues across departments like Maintenance, Quality, Stores, and Logistics.

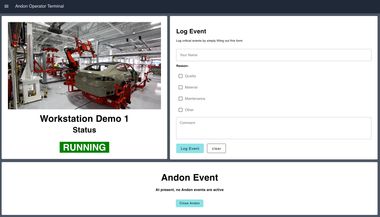

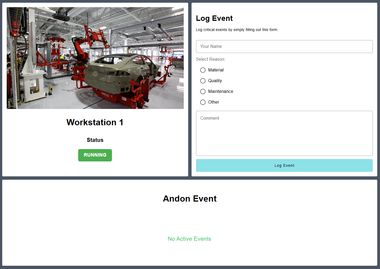

The Andon Operator Terminal is designed to be at the start of an Andon process, allowing end-users to report any issues with the cell to the station supervisor.

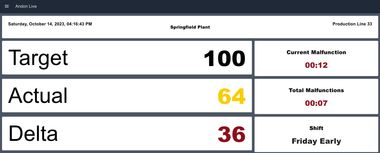

Andon Live serves as both a real-time shift status and an informational board.

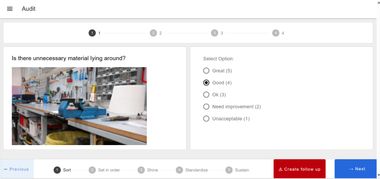

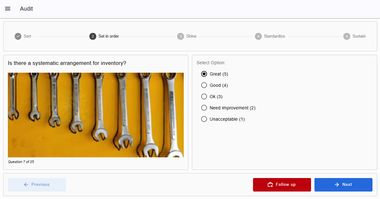

The 5S Checklist dashboard makes it quick and easy to capture and analyze 5S audit data for reporting. End users are guided through 25 checks that can be configured to meet your operational needs. This leans app allows you to store data automatically and view it in an included dashboard.

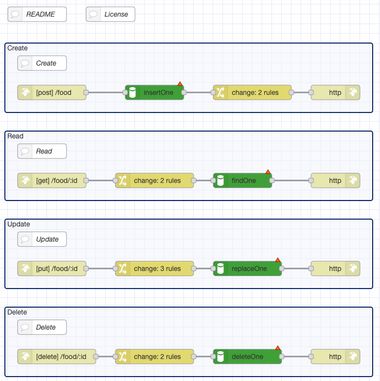

A demonstration of how to implement a basic CRUD datastore API with MongoDB. This store is backed by a MongoDB instance, you will need to supply connection details for your database.

Implementation and demonstration of the multi-user dashboard feature. This task management blueprint allows users to manage their tasks by viewing their assigned tasks, creating tasks, updating task statuses while ensuring security.

This dashboard demonstrates the utilization of InfluxDB for retrieving and displaying both real-time and historical data with timestamp series.
