Creating a Historical Data Dashboard with InfluxDB and Node-RED

Detailed instructions on how to create a Node-RED dashboard that shows historical data.

Back to Blog Posts
Image representing null

Every new dashboard is met with the fast-following request, “can we save this data and somehow look back on it?” Yes, you can, and let’s use InfluxDB to make it happen!

Edge devices are often polling sensors at regular intervals and are a perfect candidate to be paired with a database purpose-built for time-series data, like InfluxDB. Let’s capture some data, create a live chart, store the data, and then create a GUI for retrieving the data.

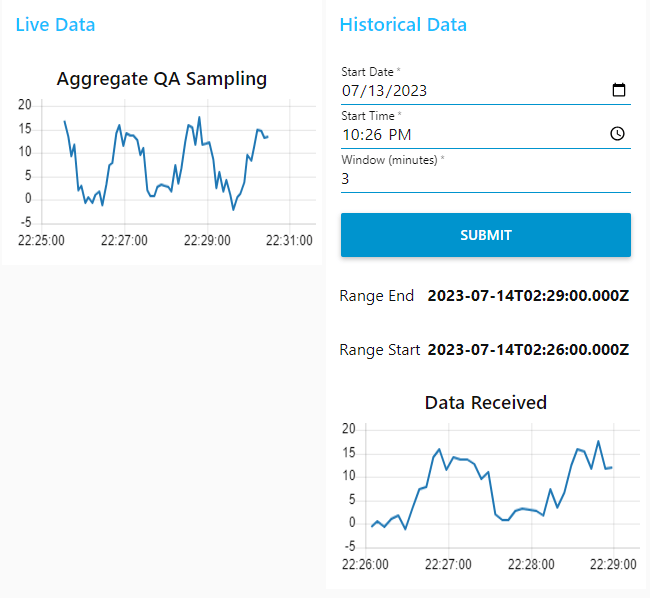

Here’s a screenshot of the dashboard we will create, which is divided into two sections. The first section displays live data, while the second section consists of fields that enable users to query the database and retrieve historical data. Looking at the live data, the chart depicts a sinusoidal graph that represents the scale measurements used for quality assurance in the aggregate production process at an automated mining operation. The graph showcases fluctuations in weight over time, indicating variations in the samples being weighed. This monitoring process ensures the quality and consistency of the aggregates being produced. The historical data shows a snippet of this information that was retrieved from InfluxDB.

"Screenshot showing the historical dashboard"


Here is a screenshot of the simple Node-RED flow to create that dashboard. We will dive into the details through this article, and, by the end, you will be able to create this flow yourself.

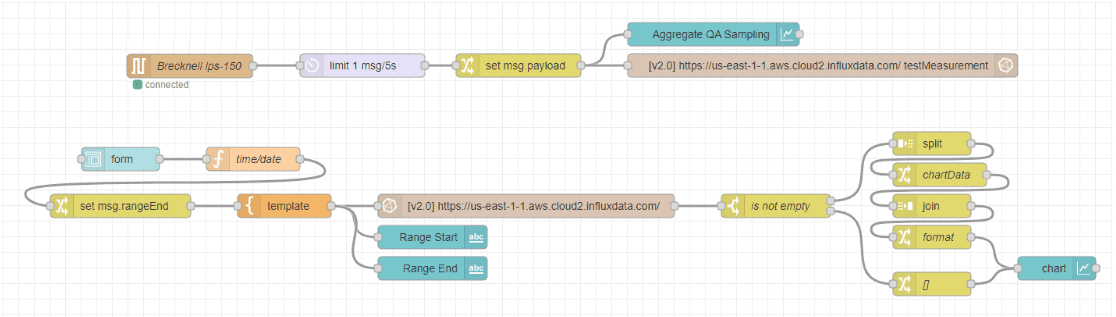

Screenshot showing the historical dashboard flow

Capturing serial port data

The live view is fed by data coming from a simple scale with a serial interface. This Brecknell LPS-150 scale will auto power-on, remembers the last tare setting, and continuously sends its reading via RS-232, so it is a great unit to use for unattended IoT projects.

On the Node-RED side, a serial node can be configured to capture this incoming data. If your device running Node-RED doesn’t have an RS-232 port, there are many variations of RS-232-to-USB cables to help you connect. This scale is sending data at a very high-speed interval so it is important to use a “delay” node before the rest of your flow gets bogged down.

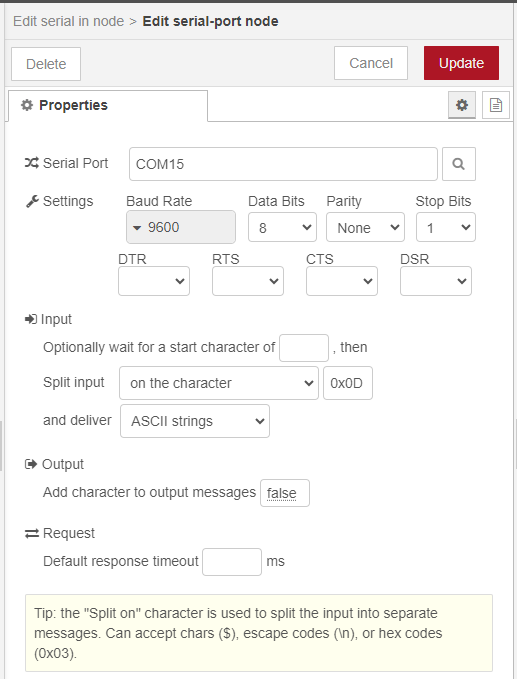

Below, I have configured the serial port node with the same settings that were used to set up the scale. These settings are commonly documented as "9600 8N1" in shorthand. In serial communication it is necessary for the two devices to have the exact same settings or the data becomes garbled. The incoming stream of ASCII text is divided using the hex value 0x0D, which corresponds to the return character. This character is used as a delimiter to separate the individual chunks of text within the incoming data stream.

"Screenshot showing the serial port node config"


With this “delay” node, we now have a new message from the scale at a rate of 1 msg per 5 seconds

"Screenshot showing the delay node properties tab"

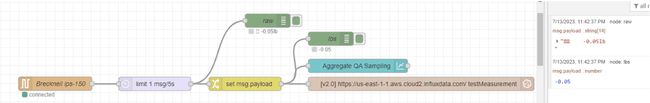

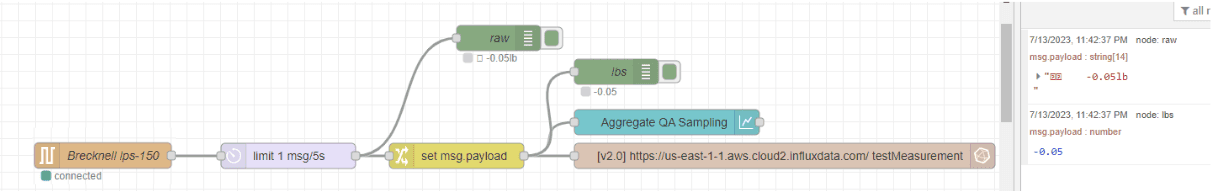

The debugger allows us to see the raw data as it is captured.

"Debugger"


Unfortunately, these values are not in a friendly form to work with. Ideally, we want our payload to just be a number, not this string with odd characters, extra spaces, and the units.

"Screenshot showing the change node setting payload"

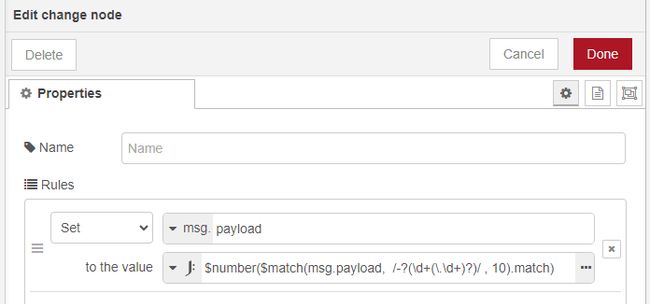

We need to extract the numeric part of the string using a regular expression with a “change” node and the JSONata expression $number($match(msg.payload, /-?(\d+(.\d+)?)/ , 10).match). “$match” and “/-?(\d+(.\d+)?)/” help the function pull out the numeric components of the string and “$number” parses these components to be an actual number data type.

Here are the properties of the “change” node.

When we look in the debugger we see the payload specified as a “number” and the value displayed in blue, both indications that we have successfully extracted the weight as the correct data type.

"Screenshot showing the output type in the debug panel"

Setting up serverless InfluxDB in the cloud

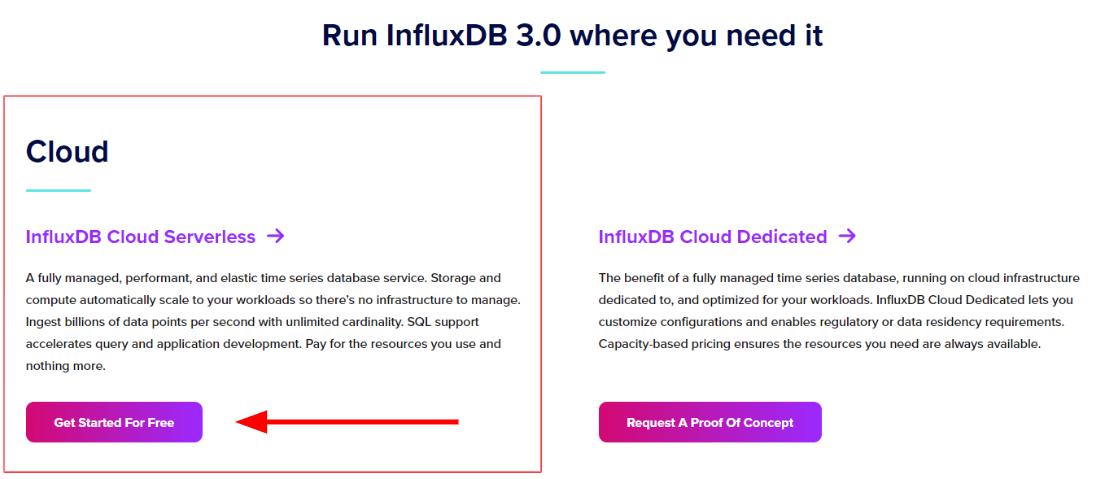

Now we have some live data, let’s store it using InfluxDB. Below are the steps to set up an account with the InfluxDB free service. Navigate to https://www.influxdata.com/products/influxdb-overview/ and let’s begin. Click on “Get Started for Free” under Cloud, InfluxDB Cloud Serverless.

"Screenshot showing the Influxdb cloud 'Getting started' button"

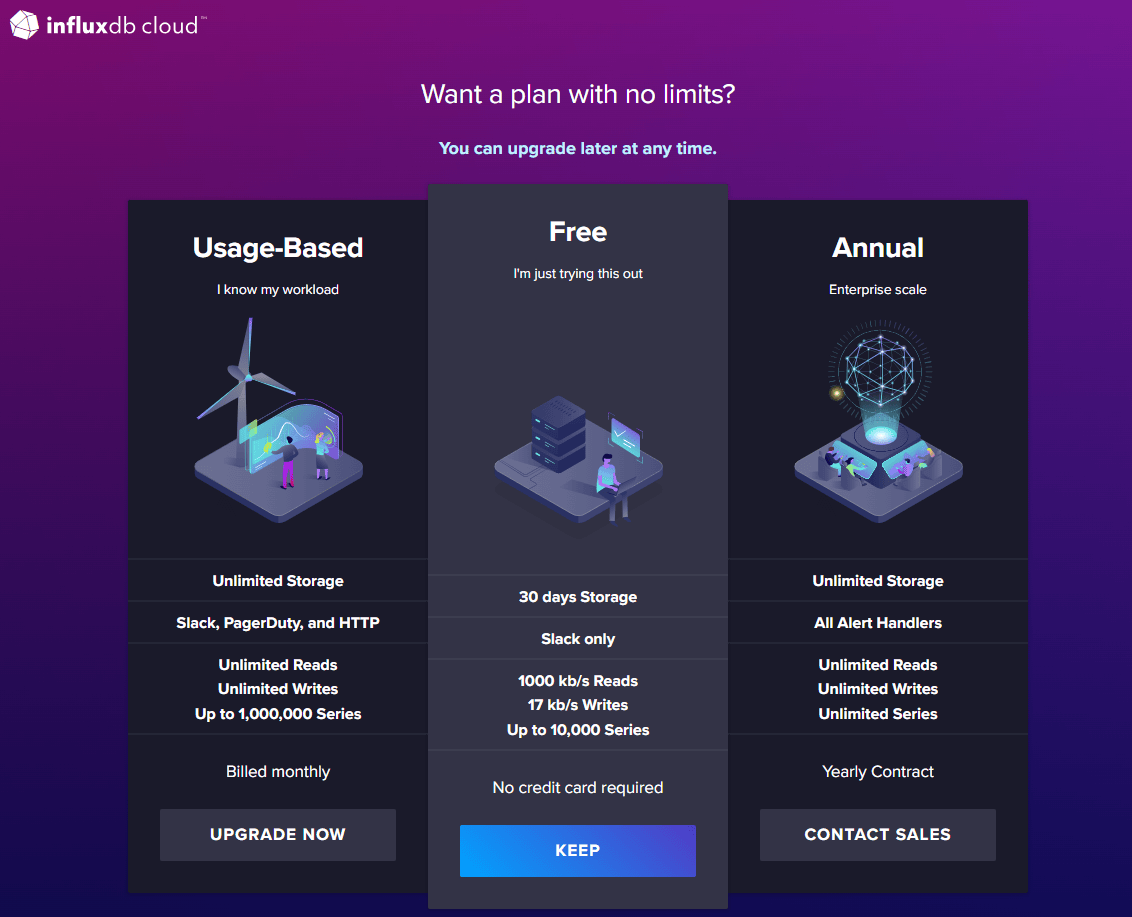

For this example the Free plan will work fine.

"Screenshot showing the influxdb cloud tiers"

Create a bucket to store the data.

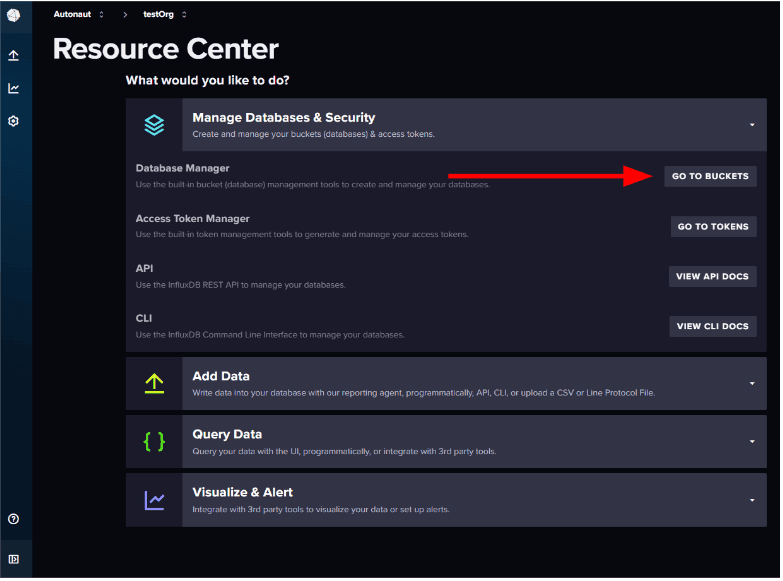

"Screenshot showing the 'Go to buckets' button"

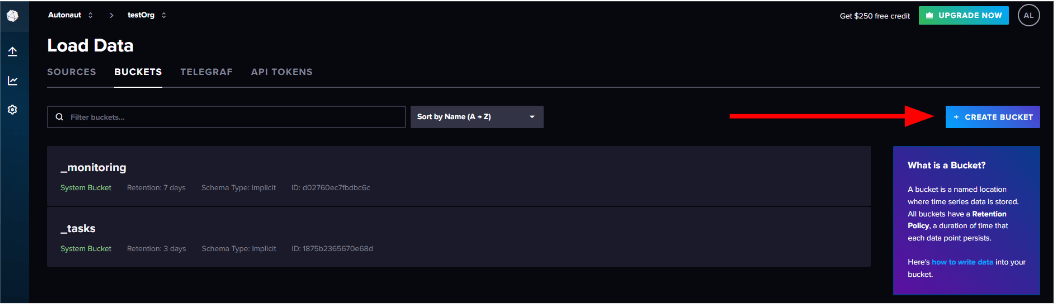

"Screenshot showing the 'Create Bucket' button"

Generate a token to direct the calls from Node-RED to your InfluxDB account when they hit the InfluxDB server:

"Screenshot showing the 'Genrate token' button"

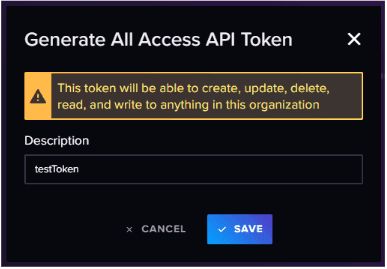

I selected “Generate All Access API Token,” but eventually you will want a custom, more restricted approach.

"Screenshot showing the 'prompt' asing to enter the description for token"

Copy your token and do not share it! (mine will be deleted later)

Connecting Node-RED to InfluxDB

Navigate to “Manage Palette” in the Node-RED hamburger menu in the upper right corner of the flow editor. I did a search for InfluxDB and selected the most popular one, “node-red-contrib-influxdb” by looking at the number of downloads per week at https://flows.nodered.org/node/node-red-contrib-influxdb. When you are just starting out, it can be a smart decision to go with the popular option. The popularity indicates a level of trust and adoption within the community, making it a reliable choice for beginners

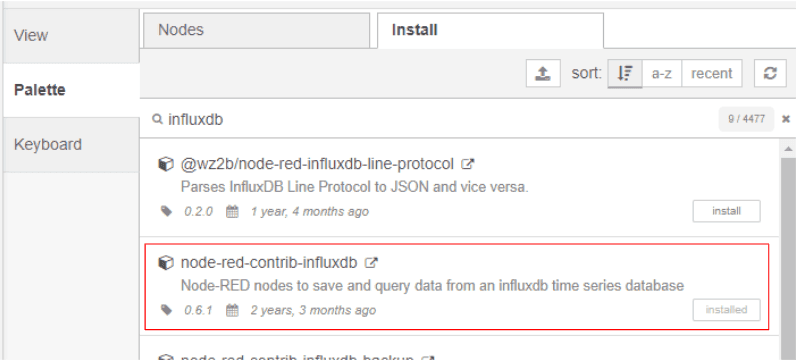

"Screenshot showing the influxdb node in the manage palette"


After installing this package you will see three new nodes in your flow editor.

Screenshot showing the installed influxdb nodes in the palette

Drag and drop the “influxdb out” node into your flow, double click on it, and start filling out the needed fields. The naming convention of “test<>” works well for initial setups to make it clear what names should go where.

"Screenshot showing the influxdb-out node config"


It was a little unclear what URL to use with this serverless option, but I guessed it was the same as the URL for the InfluxDB resource center account page, “https://us-east-1-1.aws.cloud2.influxdata.com/” and it worked. Then, enter the API token that was generated earlier.

"image_tooltip"


The “influxdb out” node is now ready to start storing payloads. The documentation for the InfluxDB nodes at https://flows.nodered.org/node/node-red-contrib-influxdb gives more detail as to extra options, such as tags, that you might want to attach to your data being stored. In this simple example, we are just going to send the “influxdb out” node a number via the msg.payload.

Screenshot showing the flow sending data to InfluxDB and to a dashboard chart widget"


Here is a chart of the live data which is also being stored.

"Screenshot showing the dashboard with live data chart"

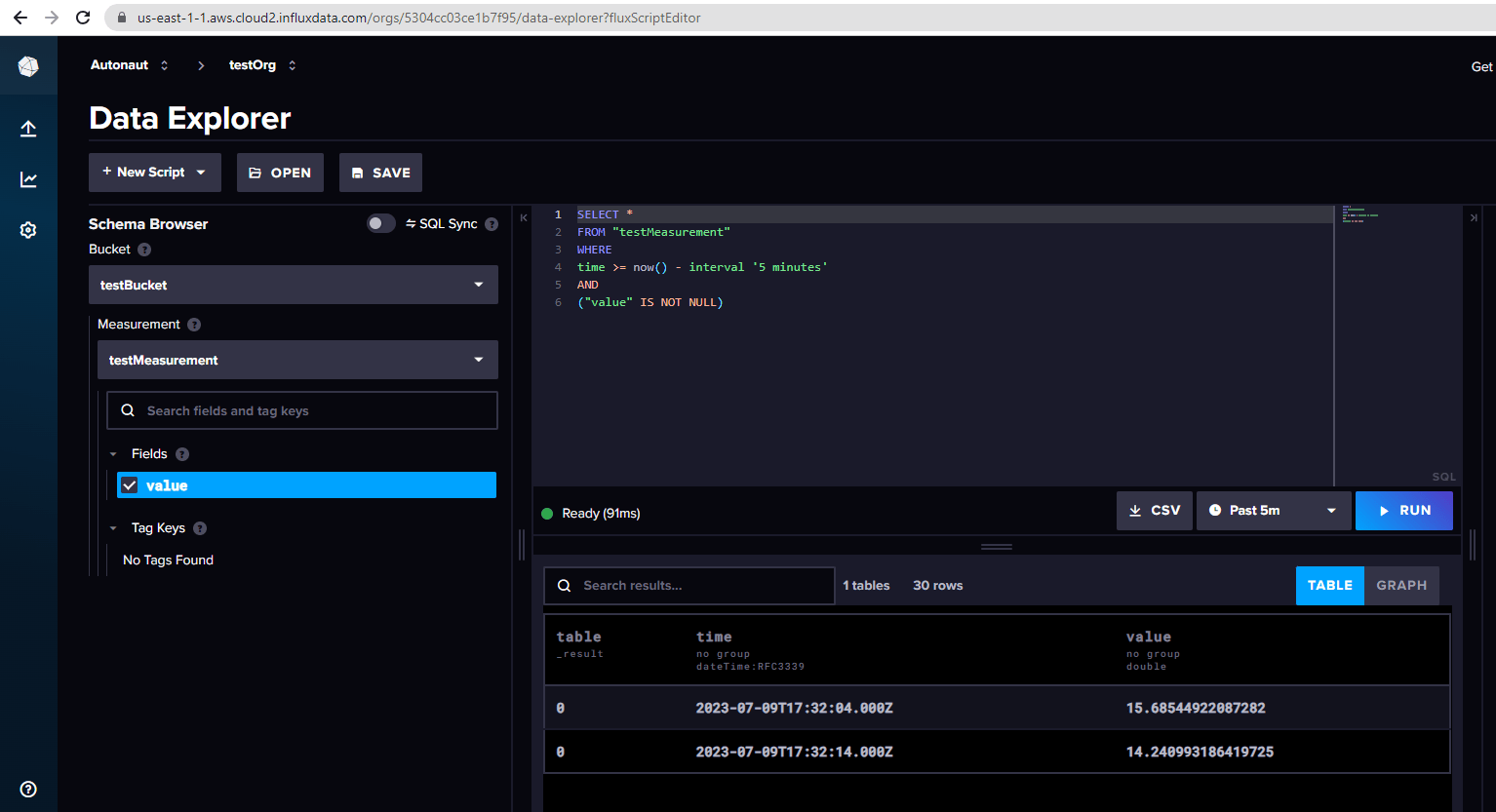

The InfluxDB Data Explorer helps you create a SQL call and allows you to run it right in the browser so you can verify that your data is being stored correctly.

"Screenshot showing the InfluxDB Explorer"


Creating a historical data GUI

Now we have our data being stored, but we aren’t quite finished. We still want an easy way to pull this information up and for it to be presented in a chart, just like the live data.

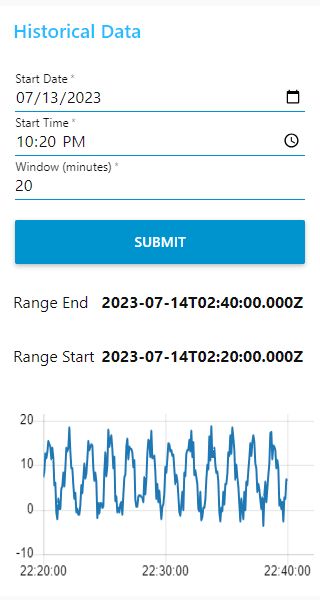

Here is the Dashboard group we will create for this GUI.

"Screenshot showing the GUI for historical data"

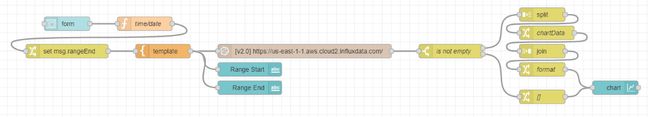

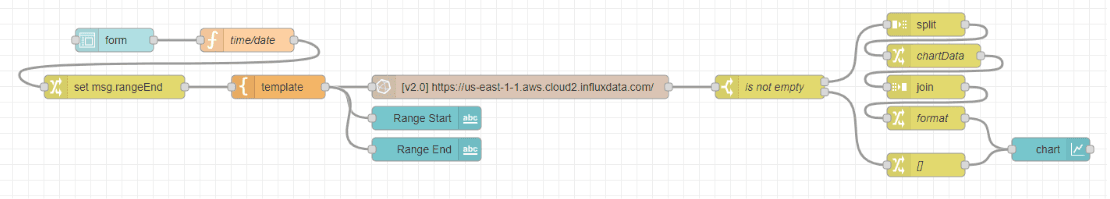

And here is the flow to create it.

"Screenshot showing the flow of historical data GUI."

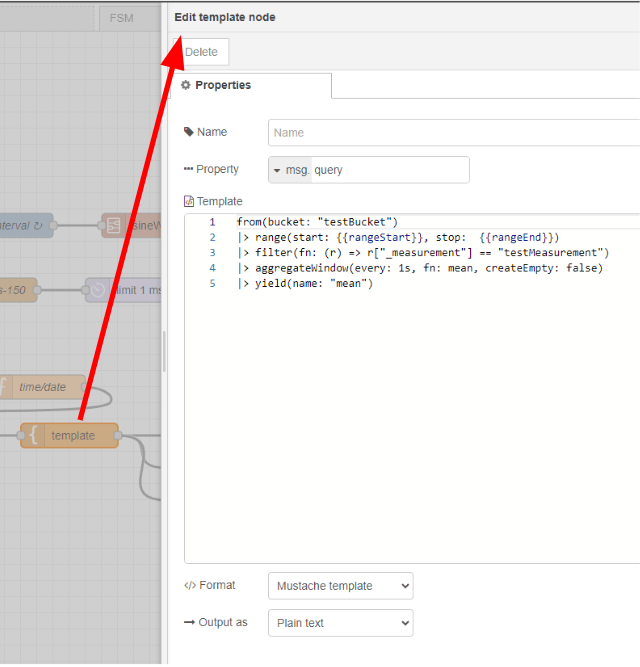

A “template” node creates a convenient way to create a plain text output with variable properties within. Below you can see that msg.query is created from a string of text with “rangeStart” and “rangeEnd” dynamically inserted using the “mustache” syntax. More information about how to query InfluxDB can be found here: https://docs.influxdata.com/influxdb/v2.0/query-data/get-started/query-influxdb/.

"Screenshot showing the template node"

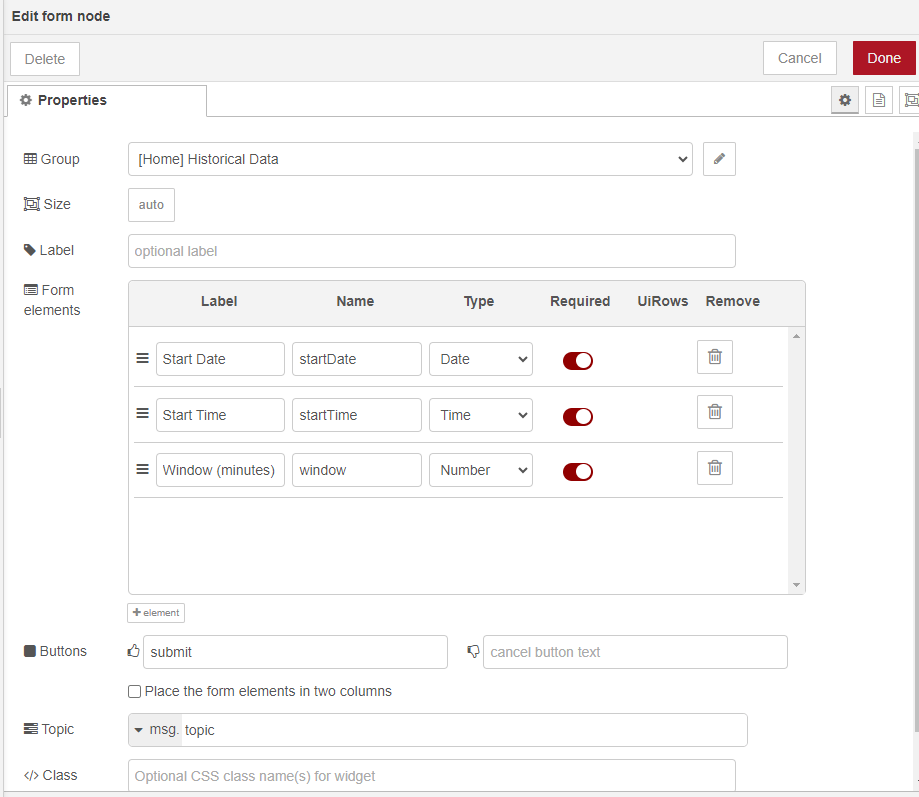

Using the "Form" dashboard node is an easy way to collect all the required information for our query. We need to be able to enter in a date and time to start gathering the data, and a window to know how long a range of values to pull.

"Screenshot of the form widget"

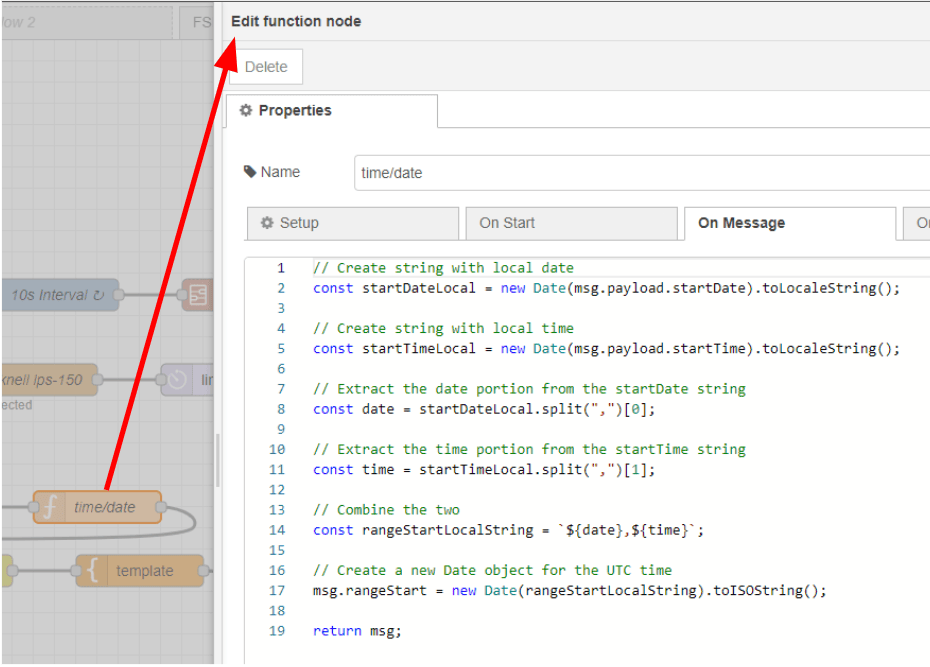

Here is the code from the “time/date” function node. A bit of juggling of local time versus UTC time is needed to allow the user to intuitively query the correct data for their timezone.

"Screenshot of the function node properties tab"

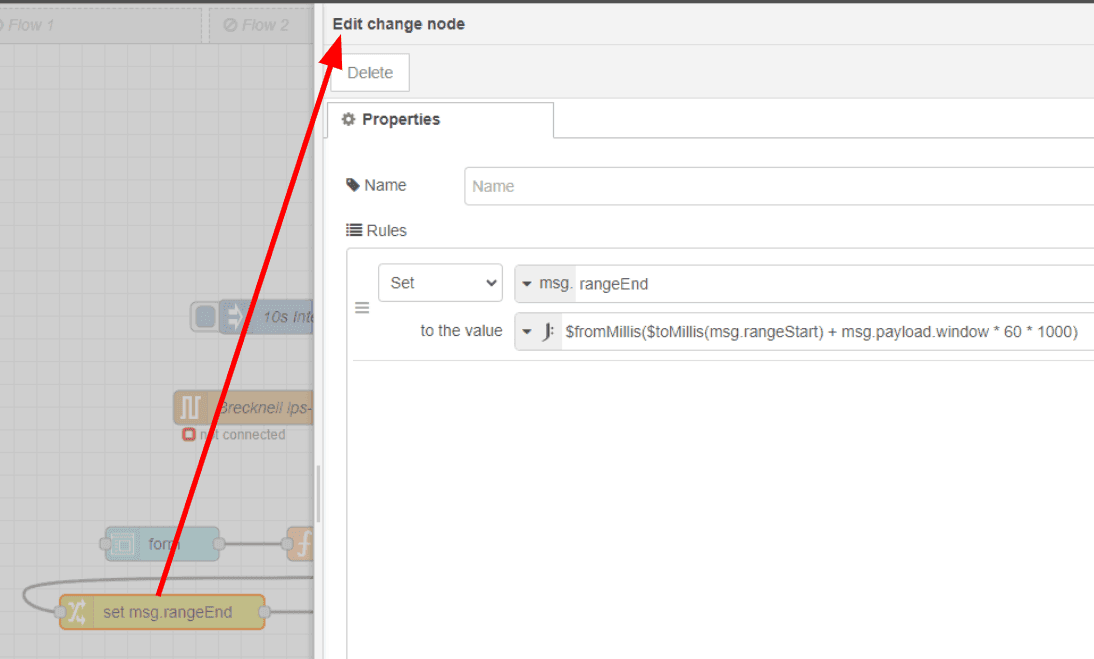

Here is the “change” node used to create the msg.rangeEnd. The JSONatta expression is $fromMillis($toMillis(msg.rangeStart) + msg.payload.window * 60 * 1000). The expression combines the milliseconds from the msg.rangeStart with the calculated milliseconds in the “Window (minutes)” from the GUI.

"Screenshot of the change node properties tab"

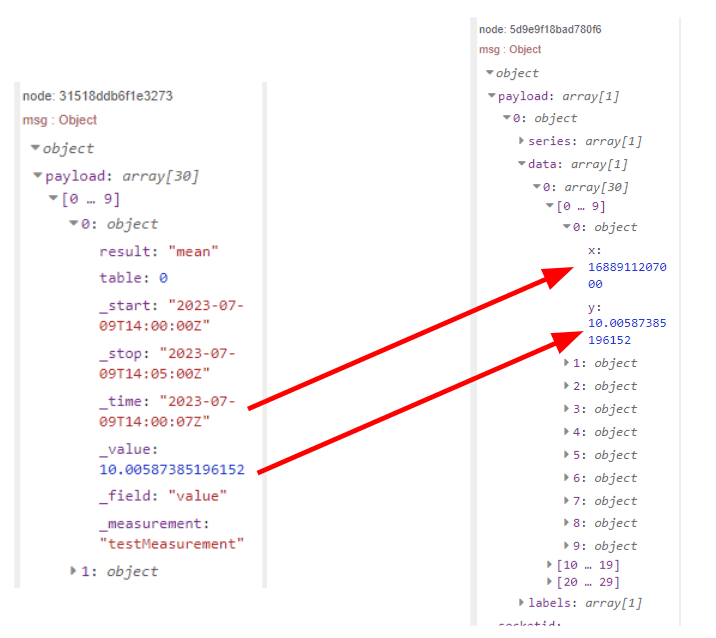

Now that the query is coming back from InfluxDB, let’s break down how to transform this data object into one that can be read by the “chart” node. Below, we see on the left column what the object looks like from InfluxDB and on the right we see how it must be structured to be viewed in the chart.

"Screenshot showing the formated data in the debug panel"

Rob Marcer has a great article on working with persistent chart data found here: /blog/2023/05/persisting-chart-data-in-node-red/.

We can use a series of nodes from the Node-RED core package to transform this data.

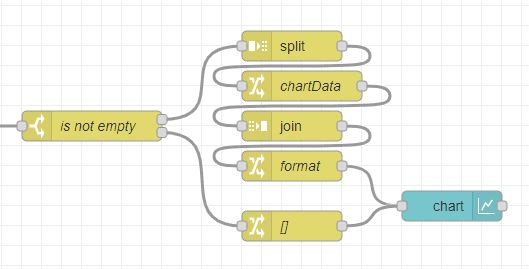

"Screenshot showing the flow to transform the data"

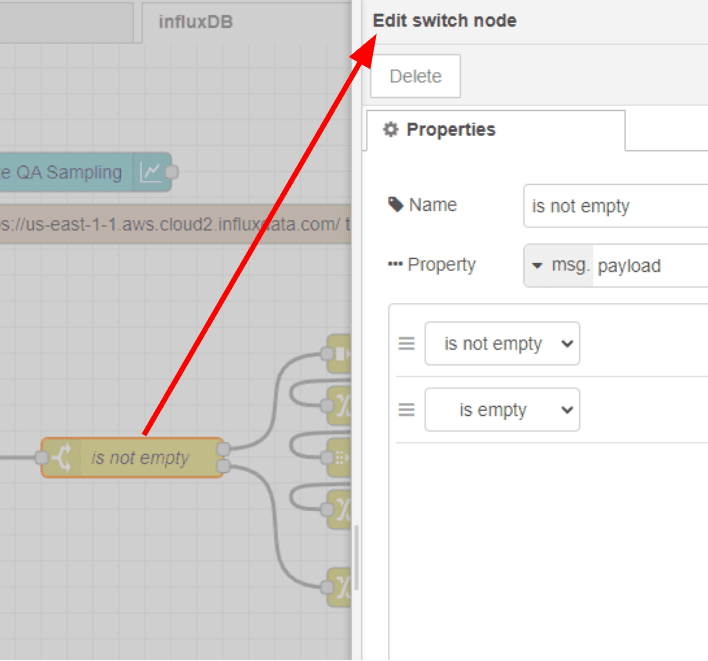

First, a “switch” node is used to determine if the response InfluxDB contains any data so that we can either format the data properly, or clear the chart and indicate “No Data.”

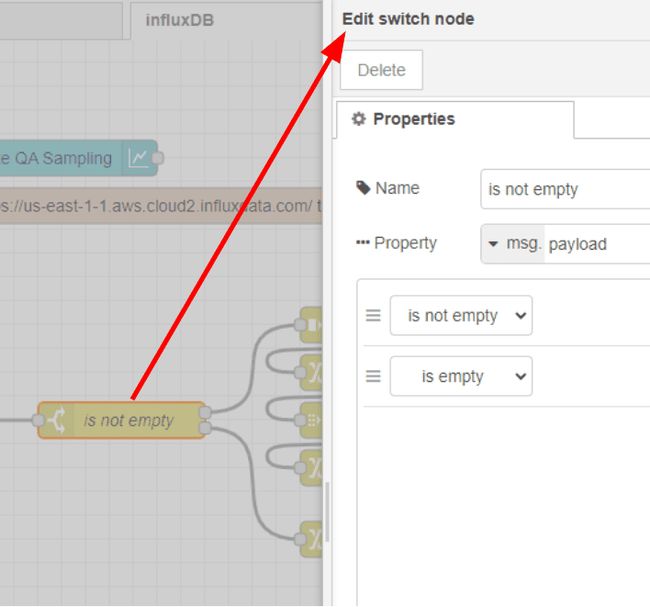

"Screenshot of the switch node properties tab"


The “Label” field in the “chart” node can also be dynamically created with the mustache syntax.

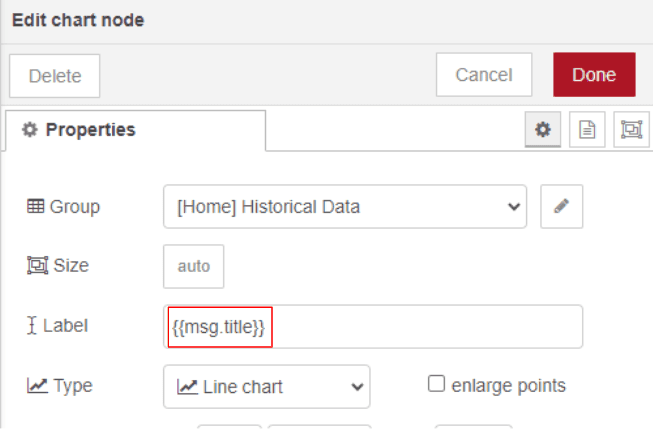

"Screenshot of the chart widget setting label dynamically"

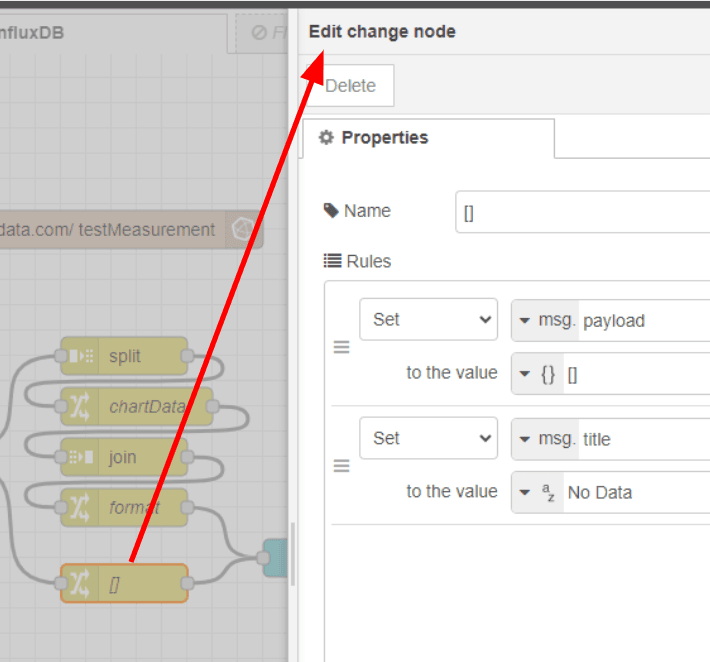

If the “is not empty” “switch” node sees an empty payload, this “change” node sets the payload to an empty array, clearing the chart, and sets the msg.title to “No Data” so users know their query, though successful, returned an empty set of values.

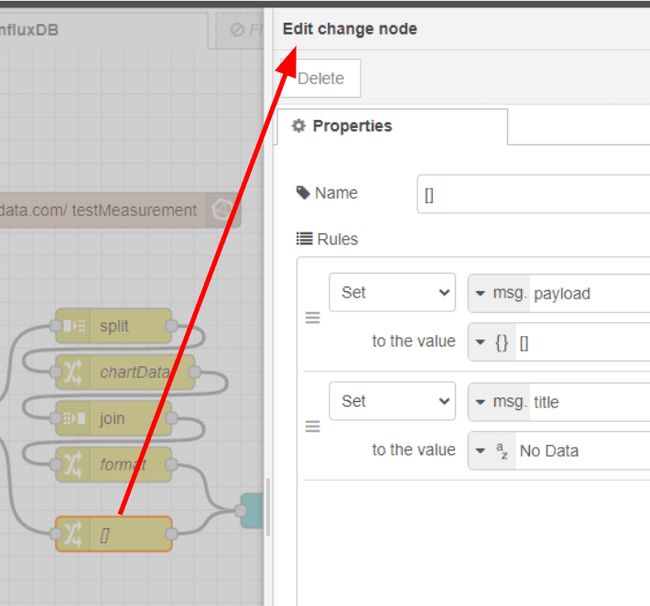

"Screenshot of the change node properties tab"

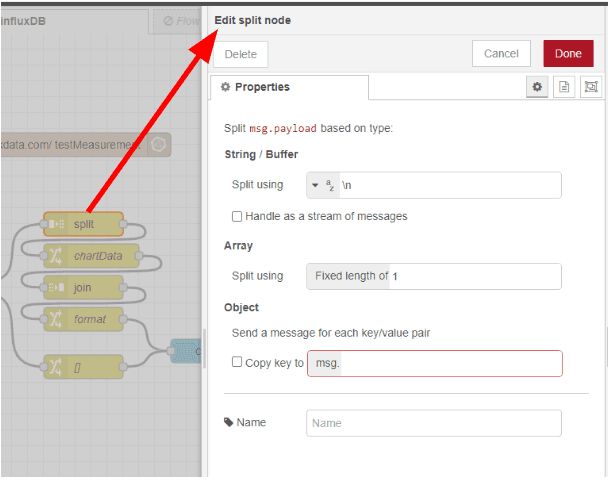

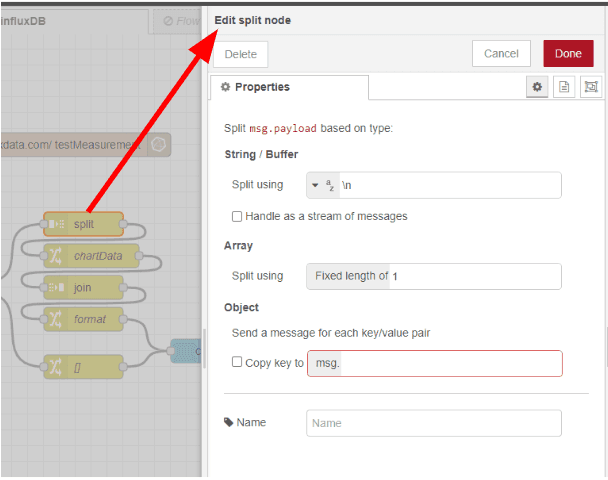

The parameters for the “split” node can be left as-is.

"Screenshot of the split node properties tab"

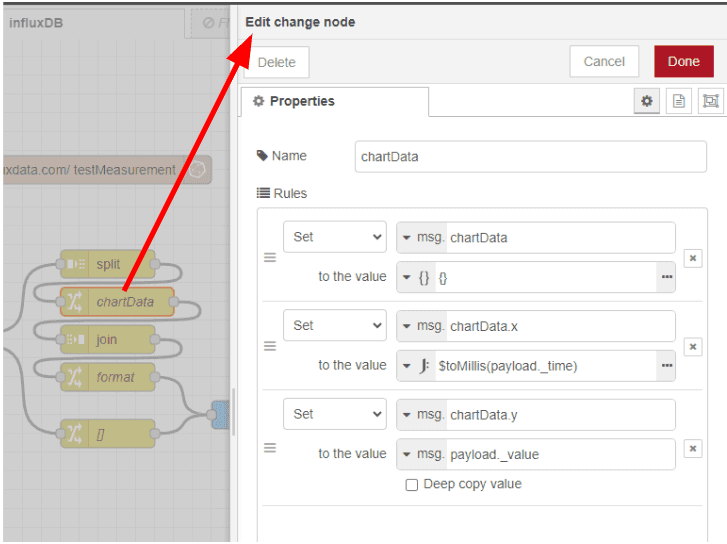

In the “chartData” “change” node, will pull out the two values we need for the chart, milliseconds since the UNIX epoch for the x-value and the measurement from the scale for the y-value. A simple JSONatta expression helps us transform the date from a string to milliseconds for the x-value.

"Screenshot of the change node properties tab"

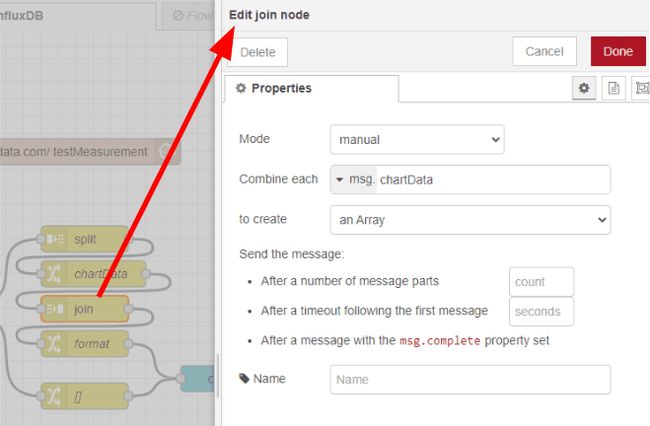

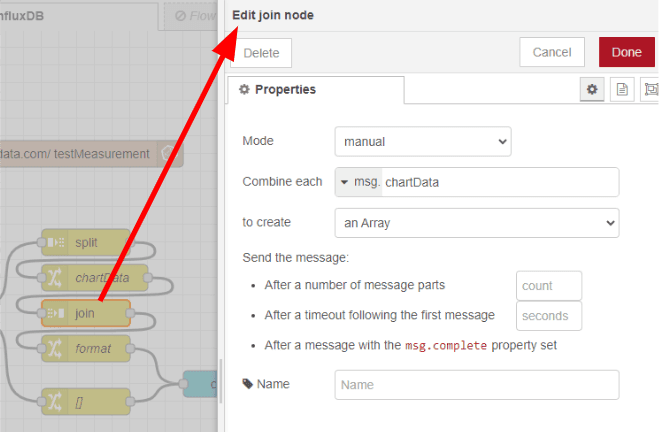

The “join” node just needs to be set to “Combine each” msg.chartData object and configured “to create” an array.

"Screenshot of the join node properties tab"

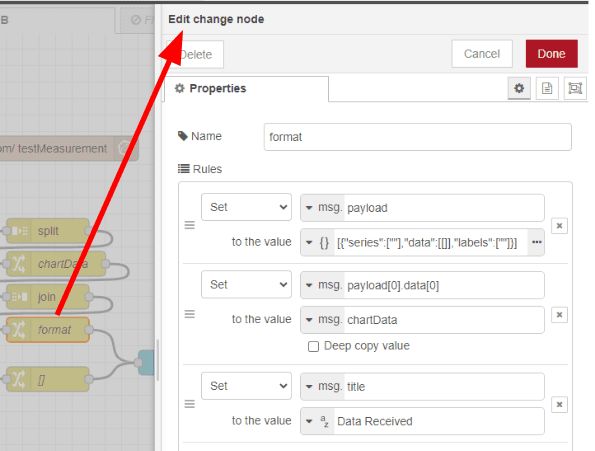

The final “change” node, “format,” is where we prescribe the format needed for the “chart” node, [{"series":[""],"data":[[]],"labels":[""]}], and finally we insert our msg.chartData array into that structure. Notice msg.title is now set to “Data Received.”

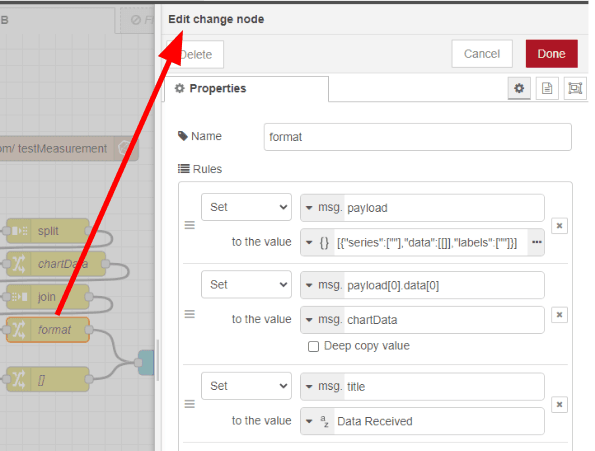

"Screenshot of the change node properties tab"

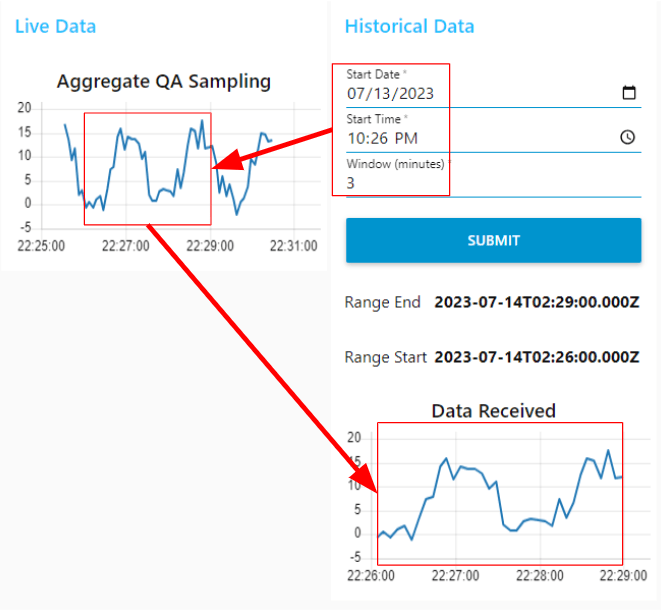

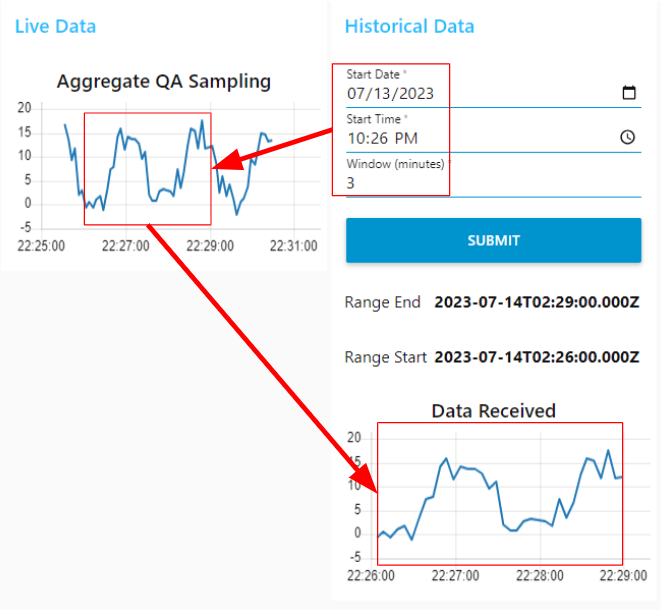

And, there you have it. You can query the same range of data found on the live chart to ensure the code is working and then you can use the dashboard to pull up historical data, way in the past from what is shown on the live chart.

"Screenshot of the dashboard showing the historical and live data chart"

Final Thoughts

This was a data-driven journey, capturing values from a scale for comprehensive testing. We were able to develop a simple, yet powerful dashboard that visualizes this live data while using InfluxDB as a reliable storage solution. We also designed an intuitive interface for efficient data querying to generate charts to analyze historical data.

InfluxDB's capabilities go beyond these initial achievements. It can be deployed locally, has the ability to handle high sample rates, can apply data scrubbing functions, and store this filtered data to enhance data quality and accessibility. Most importantly, this data visualization enables us to spot trends effortlessly and gain valuable predictive insights by examining historical data leading up to specific events. We are empowered to uncover meaningful patterns, make informed decisions, and drive innovation in data management and analysis.
